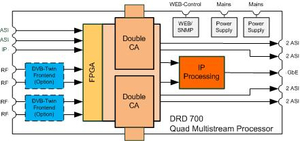

DRD 700 is a DVB-Quad Receiver and can be equipped with different Twin-DVB-Frontend modules. 2 ASI-Inputs and 2 redundant IP-GigE-SFP interfaces are available as an option.

The 4 independent MPEG2/MPEG-4 SD/HD-input signals are demodulated, descrambled and are available at the 4x2 ASI outputs. For Multi-Service Descryption up to 4 CAM modules can be inserted into the DVB-CI Slot the front panel.

The IP-GigE-SFP interface allows the IP-output-streaming of up to 4 MPTS streams and up to 60 SPTS streams. IP-Input streaming and redundancy of the IP-GigE-SFP interfaces are options.

The processing option includes service and PID-filtering and the multiplexing of up to 4 new DVB compliant transport streams out of the input signals.

2x DVB-Twin-Frontends: DVB-S/S2, DVB-T/C or DVB-T2

2x ASI Inputs

2x IP-GigE-SFP-Interfaces for IP-Input or IP-Output-Streaming (Option Redundancy)

IP-Input Streaming (Option)

Service-Filtering and DVB-Compliant Multiplexing (Processing Option)

Multistream Demultiplexing

4 x DVB-CI slots for CAM modules for Multi-Service-Decryption

IP-Output-Streaming MPTS/SPTS

4 x 2 ASI Outputs

BISS/NDS Decryption (Option)

Web/SNMP Server (IP-Control port)

Redundant Power Supply
